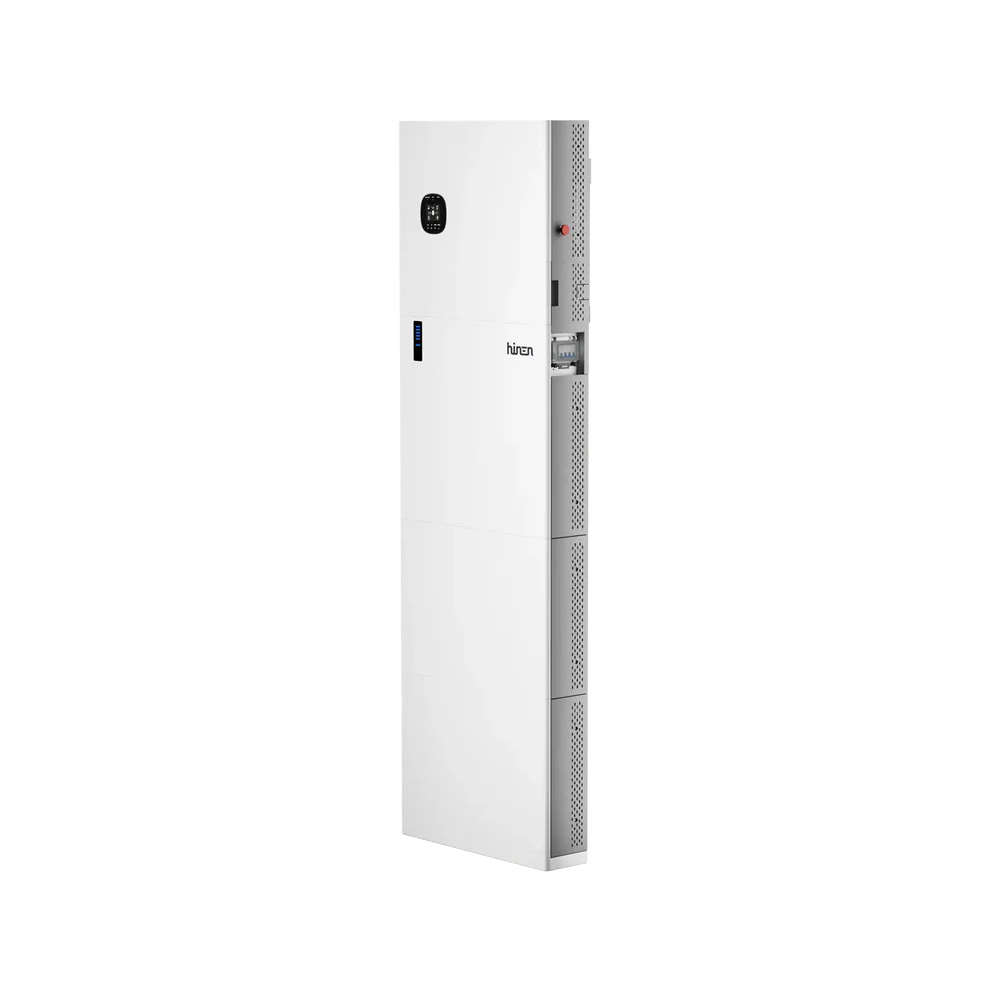

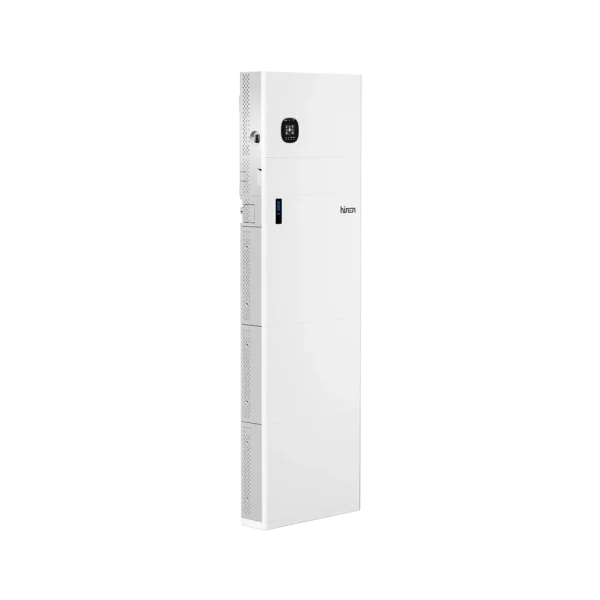

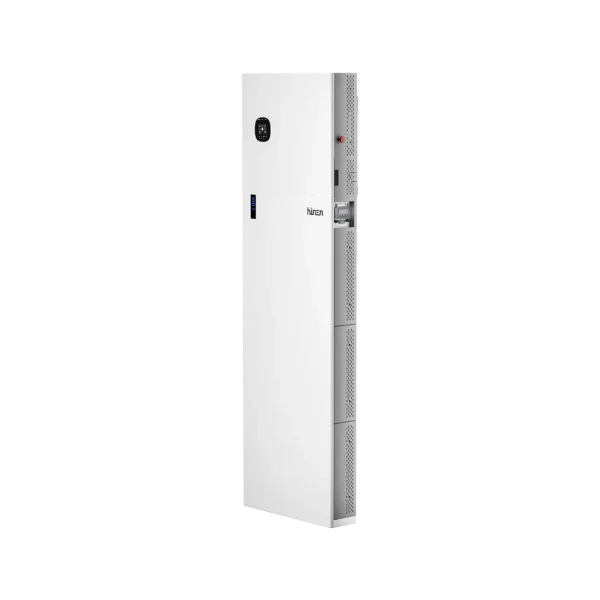

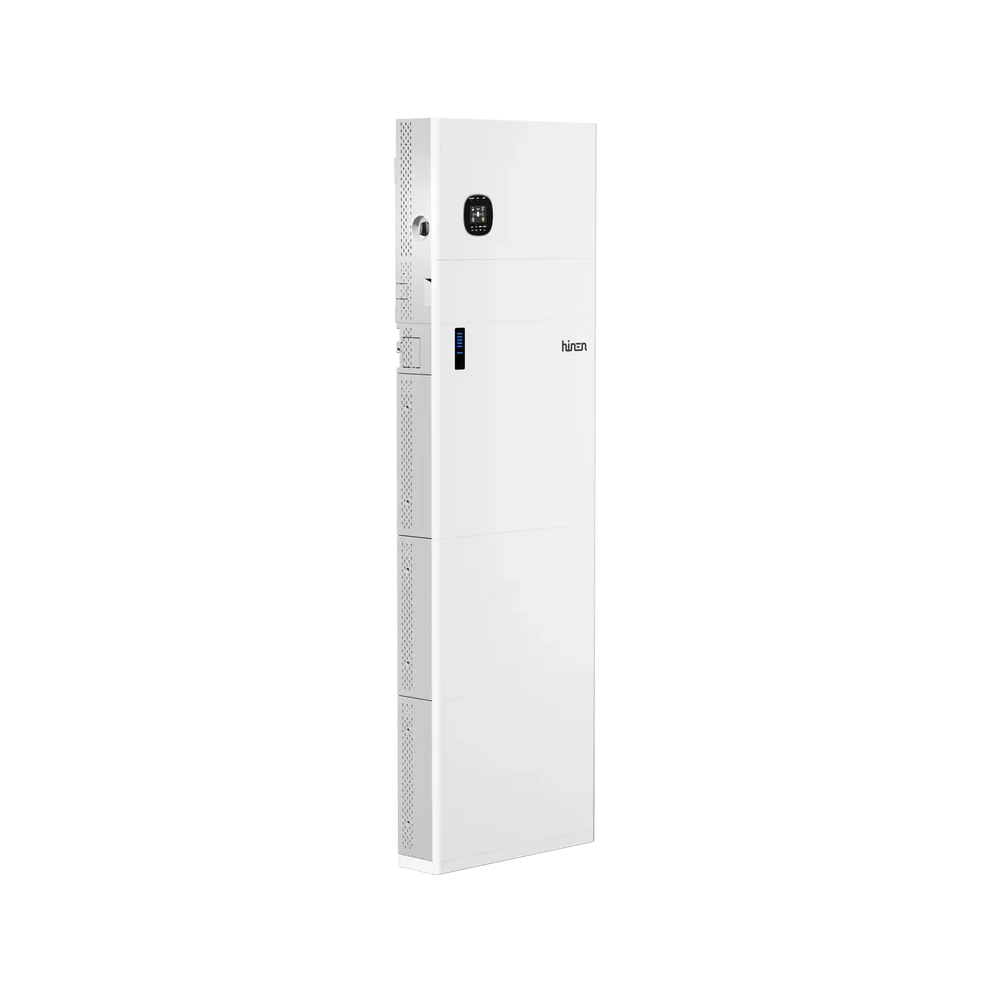

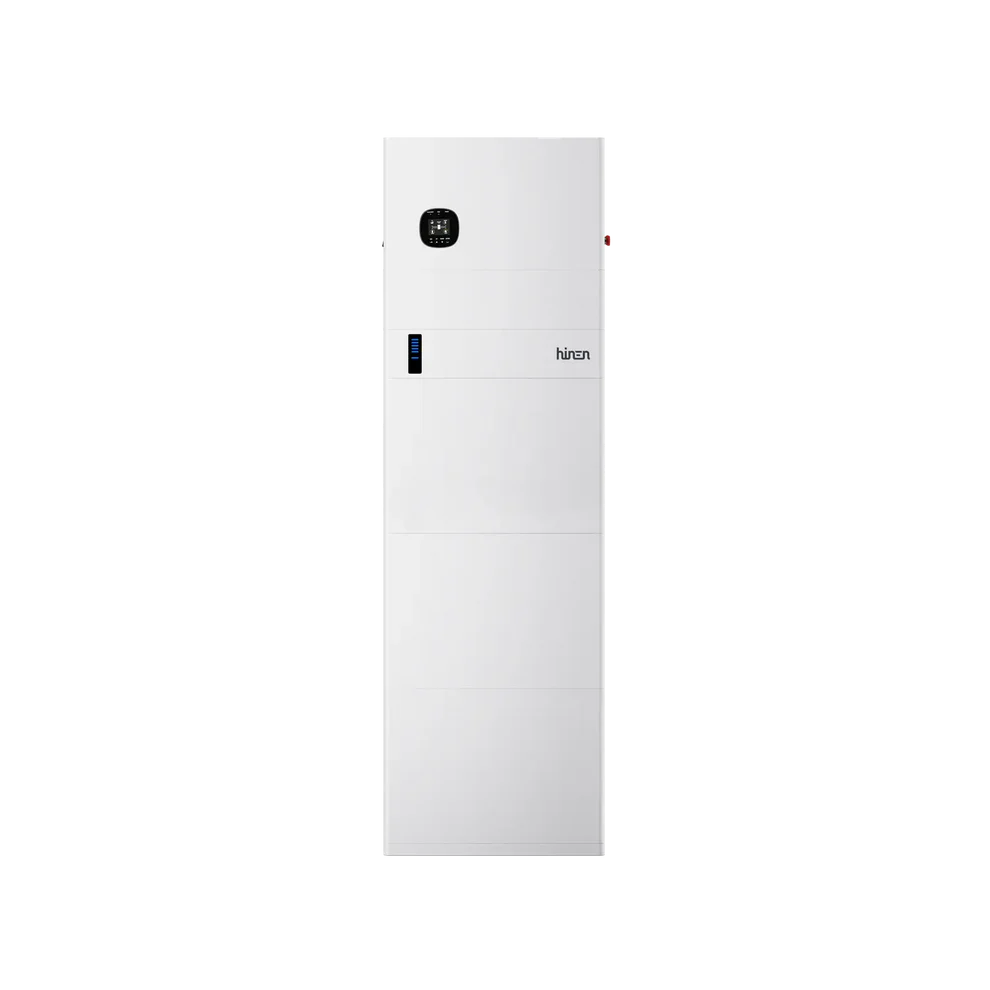

A Series H25T

A25000T+B8900M-HA: 25kW Three-phase All-in-one Residential Energy Storage System

4 MPPT inputs, 120% oversized PV input, max 30kW
Inverter parallel function, up to 6 units
Stackable integrated design, plug & play, no additional cable, saving 50% installation time
120~600V ultra-wide battery voltage range, which can realize 20kW charging and discharging capacity of one way battery
Support 100% three-phase unbalanced output

features

Only compatible with Li-ion battery
Built-in change over switch, allows manual selection between Backup mode and By-pass mode for backup loads
Back-up load transfer time ≤10ms
Intelligent load management and automated start/stop of diesel engines via dry contacts
The phase sequence does not matter, ensuring easier and more flexible installation
